The Role of the Slide Plate Clean Machine in the AAC Block Production Process:
Cleans and removes any residual materials or concrete slurry from the slide plates used in the cutting process to ensure smooth operation and precise cutting of aerated concrete blocks.
Process It Belongs To:
Cutting and Shaping process, specifically for maintaining clean and efficient slide plates during the cutting of aerated concrete blocks.
Related Equipment Before:
Cutting Machine – Cuts the aerated concrete into desired block sizes before cleaning the slide plate.
Tilting Crane – used to tilt the molded aerated concrete onto the cutting platform.
Related Equipment After:
Autoclaving Equipment – for curing the cut blocks under high pressure and temperature.
Finished Block Conveyor – for transporting the finished blocks to the packaging area.
Structure

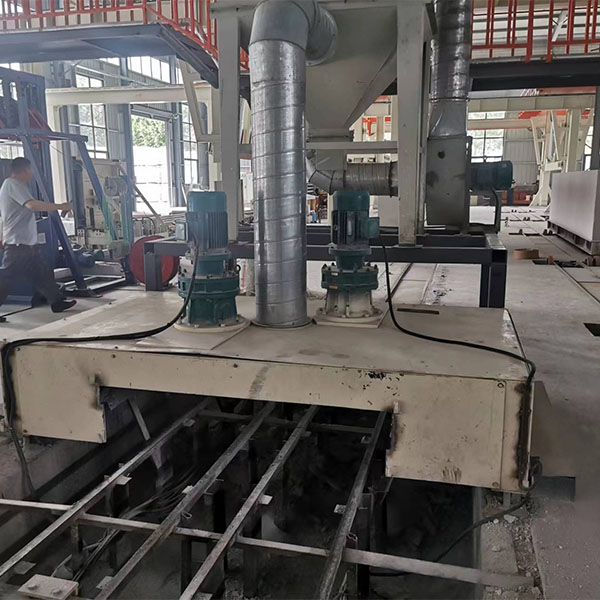

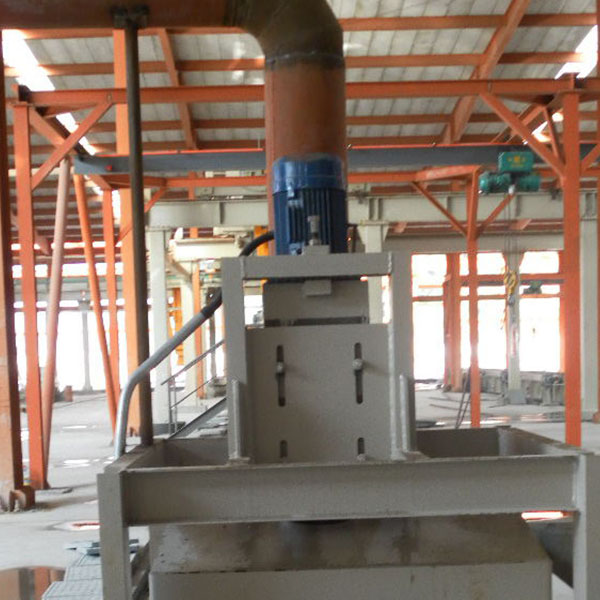

The side panel cleaning machine consists of a motor cover, a frame, an adjustment mounting frame, a cleaning wire brush, etc., and the frame is welded by steel sections.
Working principle
After the side panel cleaning machine is installed, the side panel passes under the cleaning wire brush of the side panel cleaning machine. The motor power is turned on, and the side panel cleaning machine motor is started, which drives the wire brush (brush) to rotate through the transmission shaft. This process effectively cleans the dust on the side panel countertop.

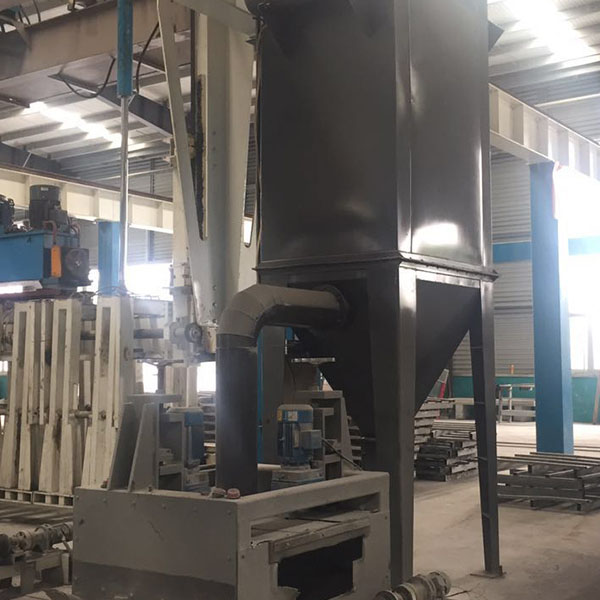

As a result, the side panel countertop becomes clean. If a dust collector is equipped for dust collection during this process, the cleaning effect will be significantly improved.
