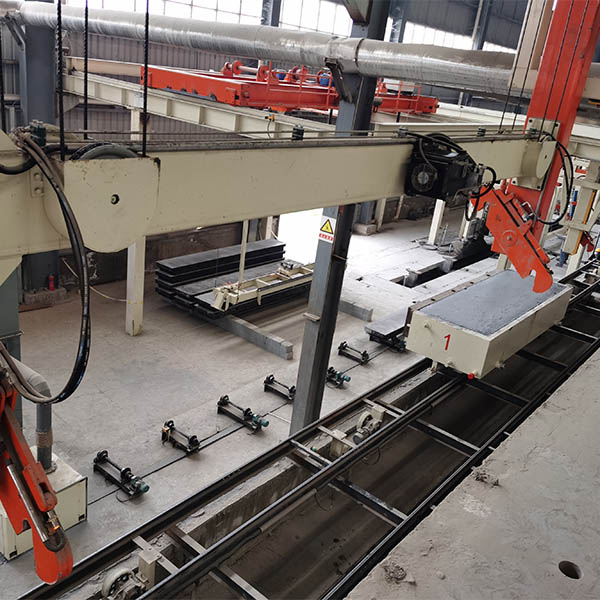

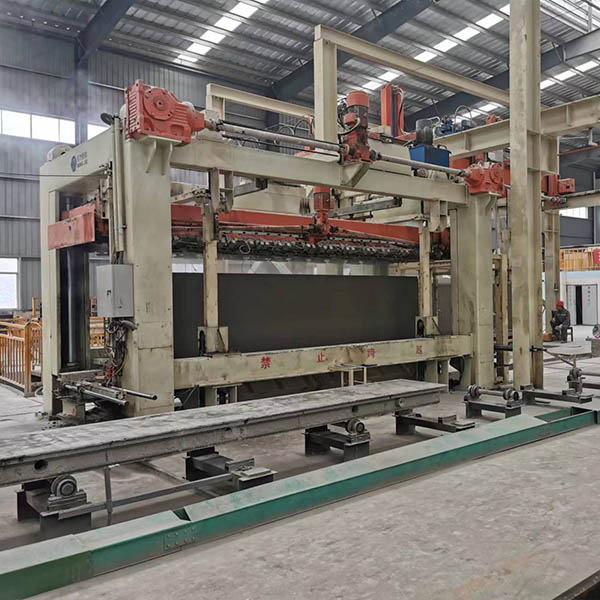

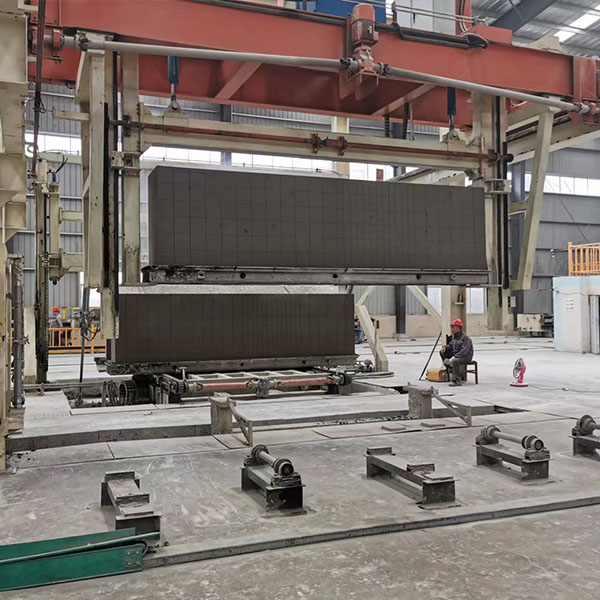

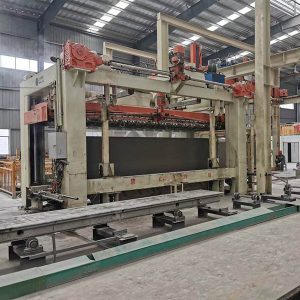

The Role of the Side Plate Roller in the AAC Block Production Process:
Moves the side plates, which serve as the base for the AAC block during the cutting and autoclaving process. It helps transport the green cake (uncut or cut blocks) to the next processing stage.
- Process It Belongs To:
Cake Cutting and Autoclaving process, specifically for transporting the AAC green cake between the cutting and autoclaving stages. - Related Equipment Before:
Cutting Machine – where the green cake is cut into blocks of desired dimensions.
Tilting Crane – used to tilt the green cake from the mold onto the cutting machine or side plates. - Related Equipment After:
Autoclave Loading System – for loading the cut blocks with the side plates into the autoclave for curing.
Autoclave – where the AAC blocks are cured under high pressure and temperature to gain strength.
Structure
1. The conveyor roller line is composed of multiple groups of conveyor rollers (each group consists of two types: active machine and passive machine). When the conveyor line is assembled, the active machine and the passive machine should be installed at intervals.
2. The active conveyor roller consists of a machine base, a transmission shaft, a conveyor wheel, a bearing, a bearing seat, a coupling, a reducer, etc. Steel plates and welds make up the machine basis.
3. The passive conveyor roller consists of a machine base, a transmission shaft, a conveyor wheel, a bearing, a bearing seat, etc. The machine base is also made of welded steel and steel plates.
Working Principle
The side plate roller is a special roller that can automatically move the side plate during the walking process without human push. Place the side plate on the assembled conveyor line, connect the power supply of the active machine, start the active machine reducer on the conveyor line at the same time, and drive the conveyor wheel to rotate through the coupling transmission to complete the walking movement of the side plate.
