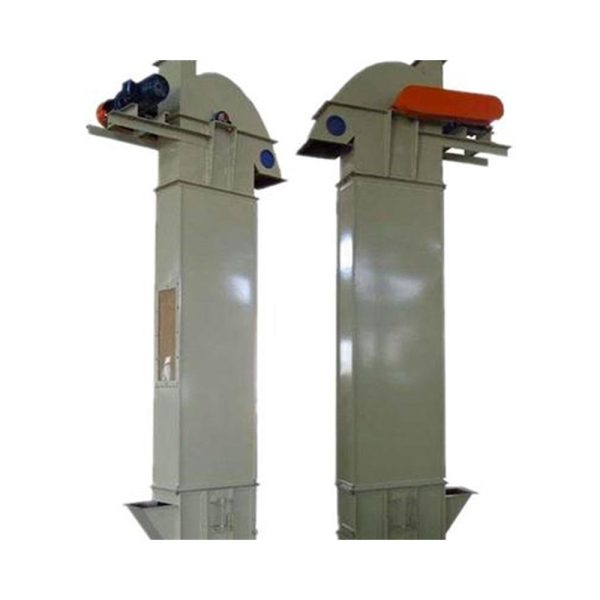

Bucket Elevator
Bucket Elevator

Bucket Elevator

  • The rubber belt, which has numerous specifications, a big conveying capacity, a high lifting height, stable operation, and a long service life, is utilized as the traction component.
  • The casing has a lovely look and exceptional stiffness since it is folded and welded.
  • It is a continuous conveying device that raises materials vertically by use of a number of hoppers that are uniformly mounted on the endless traction component.
  • Used to lift powdery or granular materials upwards and lift the crushed lime into the storage bin.
Model MJ Vertical Bucket Elevator-1 MJ Vertical Bucket Elevator-2
Structural Features Use a rubber belt as a traction member. Use forged ring chain as traction member
Load-Control Features Use centrifugal or mixed unloading methods. Use mixed or gravity unloading methods
Applicable Conveying Materials Powder, granular, small block non-abrasive, semi-abrasive materials with loose density ρ＜1.5t/m3. Powder, granular, small block non-abrasive, semi-abrasive materials with loose density ρ＜1.5t/m3
Applicable Temperature The temperature of the conveyed material shall not exceed 60℃. If a heat-resistant rubber belt is used, the temperature shall not exceed 200℃. The temperature of the conveyed material shall not exceed 250℃
Lifting Height About 4 To 40 Meters About 4.5 to 40 meters
Transport capacity 4～238m3/h 35～185m3/h

The Role of a Bucket Elevator in an Aac Block Production Line:

  • Vertical transportation of raw materials (sand, lime, cement, gypsum, etc.)
  • Continuous and automated lifting of bulk materials
  • Efficient transfer of materials to silos, hoppers, or mixers
  • Optimized material flow in the production process
  • Space-saving due to the vertical conveying mechanism
  • Ensures steady feeding of materials into different production stages.

The Conveying Working Principle of the Bucket Elevator Is:

When the bucket is full, the chain or conveyor belt raises it to the top, collecting the stuff from the storage underneath. Once the bucket elevator passes the top wheel, it lowers and empties the material into the receiving trough. The rubber transmission belt, which is mounted on the upper and lower redirection rollers as well as the lower or lower transmission roller, is typically used in belt-driven bucket elevators.

Two parallel transmission chains, two upper or lower side transmission sprockets, and two lower or higher side redirection sprockets are often seen on a chain-driven bucket elevator. A covering is typically installed on bucket elevators to keep dust out of the machine.
